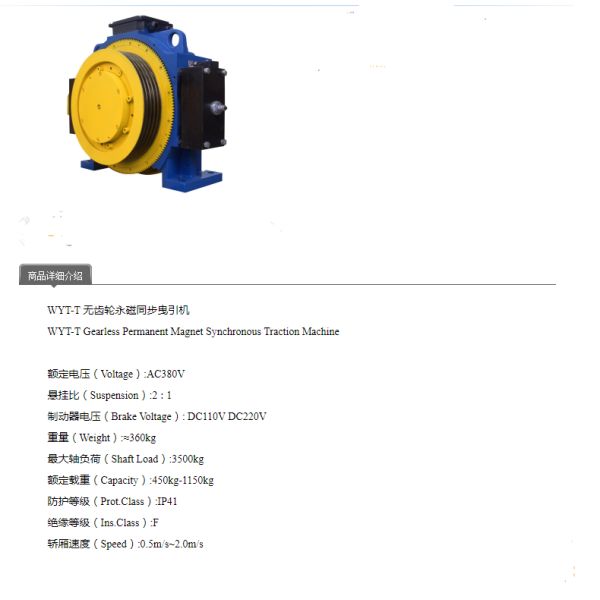

WYT-T Gearless Permanent Magnet Synchronous Elevator Traction Machine

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.

PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.

WYT-S series is outer rotor gearless permanent magnet synchronous traction machine. Its structure is opposite of inner rotor gearless permanent magnet synchronous traction machine, i.e., rotor is outside of stator coil. The axial direction length of outer rotor traction machine is short and can satisfy special request for machine-roomless elevator. The machine is small and saves in primary material. But, this traction machine cannot bear large shaft load because of its small radial dimension of shaft. Therefore, outer rotor structure is adopted generally by elevator whose load is bellow 1150kg and speed is below 2.0m/s.
